CCS-2 Combo 2 CHAdeMO 60KW 200A IP54 DC Fast EV Charger

Brand Name : ARK

Model Number : EF160CJ082

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : 15000USD/unit

Payment Terms : T/T

Supply Ability : 500 units per month

Delivery Time : 30 days

Packaging Details : Wooden case

Power : 60KW DC and 22KW AC

Input Voltage Range : 260V-530V AC

Input Frequency : 50Hz/60Hz

Output Voltage : 200 - 1000V DC, constant output @ above 300V

Output Current : 0-200A

Warranty : 24 months

Working Humidity : 5%-95%

Working Temperature : -30° C to +55° C

Charging Standards : CCS-2 and CHAdeMO

Efficiency : 94%

Contact Now

CCS-2 Combo 2 CHAdeMO 60KW 200A IP54 DC Fast EV Charger

Overview

Quick Details

Place of Origin:: Jiangsu, China

Model Number:: UF160K750CJ-AC22

Brand Name:: ARK or OEM

Input Voltage Range:: 260 - 530VAC

Input Frequency Range:: 45 - 65Hz

Output Voltage Range:: 150 - 550VDC

Output Current Range:: 0 - 200ADC

Rated Output Power:: 120kW

Warranty:: 12 Months

Working Humidity:: 5%-95%

Working Temperature:: -20° C to +50° C

Charging Standards:: CCS & CHAdeMO

Efficiency:: >94%

Supply Ability

: 500 Unit/Units per Month

Packaging & Delivery

: Wooden case package
850 x 650 x 1700 mm
Power modules outside the charger cabinet to be shipped to avoid the damage during shipping.
32 units per 40' Container

Port: Shanghai, Shenzhen, Guangzhou

Product Introduction

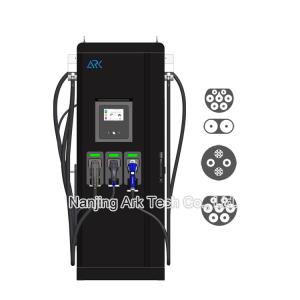

CCS-2 Combo 2 CHAdeMO 60KW 200A IP54 DC Fast EV Charger

ARK 60kW OUTPUT 150-1000V IP54 CCS CHAdeMO and AC type-2 EV charging station for electric car is the most advanced Electric Vehicle Charging Station currently available. Its modular design construction allows for free configuration of power modules and electrical components - increase the output power from 60kW to 150kW or even higher, application of a Ethernet/WiFi/3g/4g communication or RFID card reader.

This series chargers can be operated stably in various application scenarios and envrionments, even if low or high temperatures.

Product Parameters

Specification	Model	EF160CJ082
Structure	Application scenes	Parking lot/Public charging station
	Housing material	Metal case
	Dimension	8307901900mm (LWH)
	Installation method	Floor-stand type
	Cable routing	Bottom inlet, bottom outlet
	Weight	355kg
	Cable length	5m
	Cable outlets	3
Electrical specifications	Input voltage	260 - 530Vac 3-phase
	Input frequency	45 - 65Hz
	Rated power	60kW
	Output voltage	150 - 1000Vdc
	Output current	0 - 200Adc
	Efficiency	≥ 94%
	Power factor	≥ 0.99
Function design	User interface	Emergency button, LED indicator, RFID, 7" Touch screen
	Charging standards	CCS combo-1/2, CHAdeMO & AC IEC 61851 Type-2
	Communication	PLC, CAN, Wifi, 3g, 4g, OCPP 1.6
Environment condition	Application place	Indoor/Outdoor
	Working temperature	-20 ° C ~ +55 ° C
	Working humidity	5% ~ 95% without condensation
	Altitude	<2000m
	Protection grade	IP54
	Cooling	Forced-air
	MTBF	100,000 hours
	Safety standards	IEC 61851-1, IEC 61851-22, IEC 61851-23, IEC 61851-24, DIN 70121, IEC 15118-3
	Security design	Over/under voltage protection, overload protection, current leakage protection, grounding protection, over temp protection, lightening surge protection
